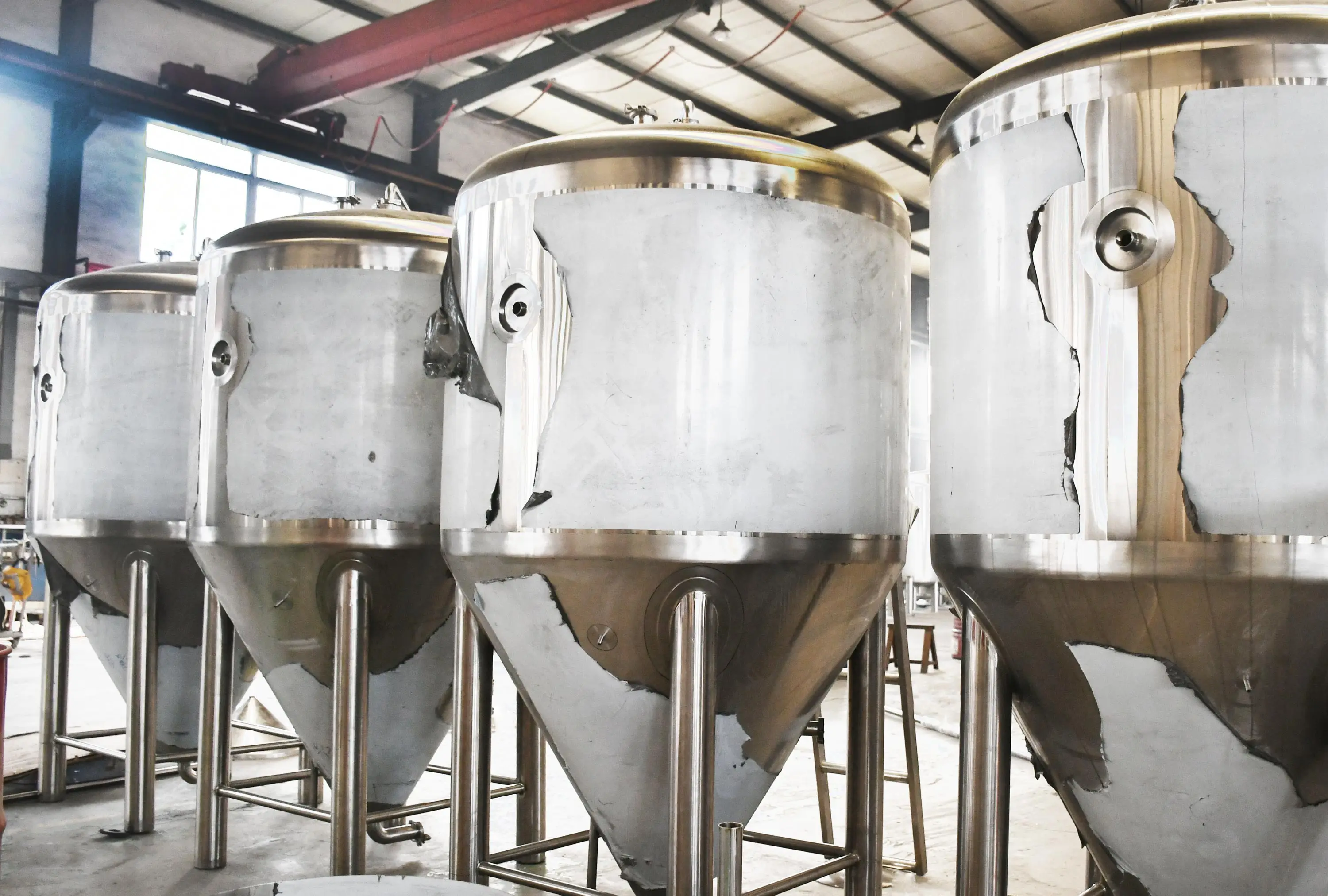

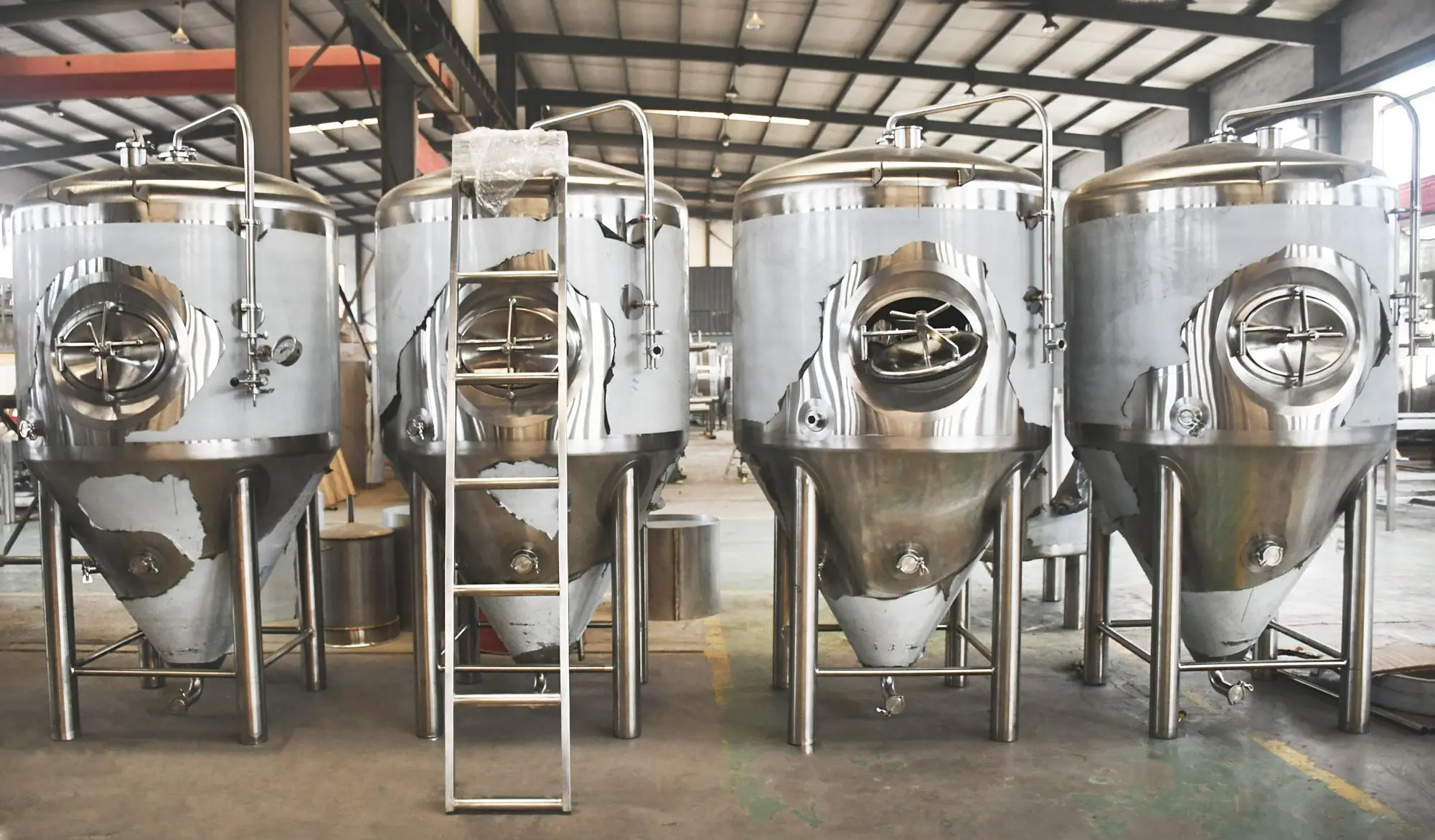

800L conical beer fermenter fermentation tanks for beer brewing system
The whole beer equipment is consisted of Mash system,Fermentation system,Refrigeration system,Control system and CIP cleaning system.
The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.beer production machine
Simple operation ,PLC automatic control system ,PLC semi-automatic control system.
At the same time if you have requirements, we could design and produce the products you need!
Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank,
brew kettle, lauter tank and whirlpool.
Fermenter cooling method is cooling dribbling with standard parameters, layout and control mode in domestic. Zunhuang companies design and
manufacture cooling dribbling according to 0.4-0.5 meters per cubic meter cooling area. And the fermentation tank adopt two-stage cooling refrigerant
control mode at the end of the cone and the tank level 10--15cm down.
Equipment list
Beer Brewing Equipment
| 1 | malt milling system | malt miller machine grist case |
| 2 | Mash system | Mash tank/Boiling tank lauter tank Whirlpool tank
Hot water tank
Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger |
| 3 | Fermenting system | Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on |
| 4 | Cooling system | Ice water tank
Refrigerating unit
Ice water pump |
| 5 | CIP cleaning system | disinfection tank & alkali tank &cleaning pump etc. |
| 6 | Controller | Control system, we have PLC automatic and semi-automatic, the brand include LG, Siemens and so on. |
| 7 | Kegging system | kegging system ( keg washer and keg filler machine), the control system brand is Siemens. |
Tank date:
1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space
2. Interior shell thickness 3-6mm, Exterior shell=2mm
3. 100% TIG welding with pure argon gas shield
4. Interior finish: pickled and passivated, external polished, 80mm insulated
5. Test pressure 3 bar, working pressure 1.5 bar
6. Glycol zones (Both on side and concial/bottom)
7. 60°conical bottom for Fermener, Shadow less side man way
8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
9. Mechanical relief valve 3 bar on CIP arm with pressure gauge
10.Adjustable tank leveling pads.
